Machine for using plastic zippers and Zipper machine
1. Machine for using plastic zippers

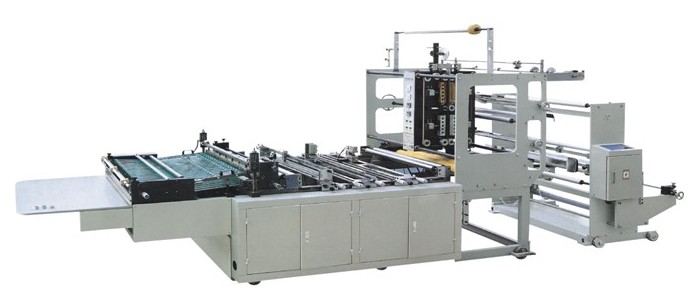

MD-900全自动夹链贴膜制袋机 |
Full Automatic Clip-chain Film Pasting Bag-making Machine |
| 特点和使用范围 |
Characteristics and Scope |
| 该机由折边、折底、热合、点断、打孔、焊烫点、热切等功能，可制作各种不同型号的夹链封口袋，如内热合外加点断、外热合袋口加锁头等。 |
MD-900Full Automatic Clip-chain Film Pasting Bag making Machine Unit, which was revised, trail-produced, verified and remoulded by referring to advanced foreign technology by our plant, is a multi-purpose bagging machine.This machine has following functio |
| 本机采用先进电脑控制、液晶显示及全自动伺服马达驱动，可断夹链、断薄膜、自动报警、无料自动停机、印刷电眼失效自动停、温度不够自动停车、折边采用光电纠编、磁粉张力等功能。 |
This machine has adopted advanced computer-controlled, liquid crystal display and automatic service motor-driven. It can cut clip-chain and film, automatically alarm, shut down automatically when no material, stop printing automatically when electronic ey |
| 1.本机操作简便、封口牢固、品质美观。 |
1. This machine operates easily, seals firmly and has quality appearance. |
| 2.制作过程从单膜原料到电眼纠边、折边、插底、穿拉链、贴合、烫边、割边、超声波、超声波、印刷机电眼、打孔、热切、自动计数、全部过程采用全自动作业。 |
2. The whole procedure is operated automatically from single film raw material to electronic eyes correcting,edge folding, end folding,zipper fitting,pasting,edge welding,edge cutting,ultrashort wave,electronic eyes printing,drilling,heat cutting,and aut |
| 主要技术参数 |
Main technical parameters |
| 型 号 |
Model |
MD-900 |
| 适用原料 |
Raw material |
OPP PELDPE等高低压料High and low voitage material |
| 电 热 |
Heater |
3KW |
| 制袋 宽度 |
Bag making width |
≤850 |
| 制袋 长度 |
Bag making length |
≤750 |
| 制袋 速度 |
Bag making speed |
40-80只/分（one/min）,8-16米/分（m/min） |
| 制薄膜厚度 |
Film thickness |
0.03mm-0.09mm(单层single layer) |
| 电 源 |
Voltage |
220V |
| 整机功率 |
Power |
6kw |
| 整机外型尺寸 |
Dimension (L×W×H) |
9000×1800×2000mm |
| 制袋机外型尺寸（长×宽×高） |
Outside Dimension (L×W×H) |
4300×1600×1800mm |
| 热贴合机外型尺寸（长×宽×高） |
Hot Pasting Machine Dimension (L×W×H) |
1700×1850×2000mm |
| 折边机外型尺士（长×宽×高） |
Edge folding machine Dimension(L×W×H) |
2100×1800×1600mm |
| 机器重量 |
Machine Weight |
N.W:2600KGS |
